Wood

SCAN 85-1

Perfect proportions

Description

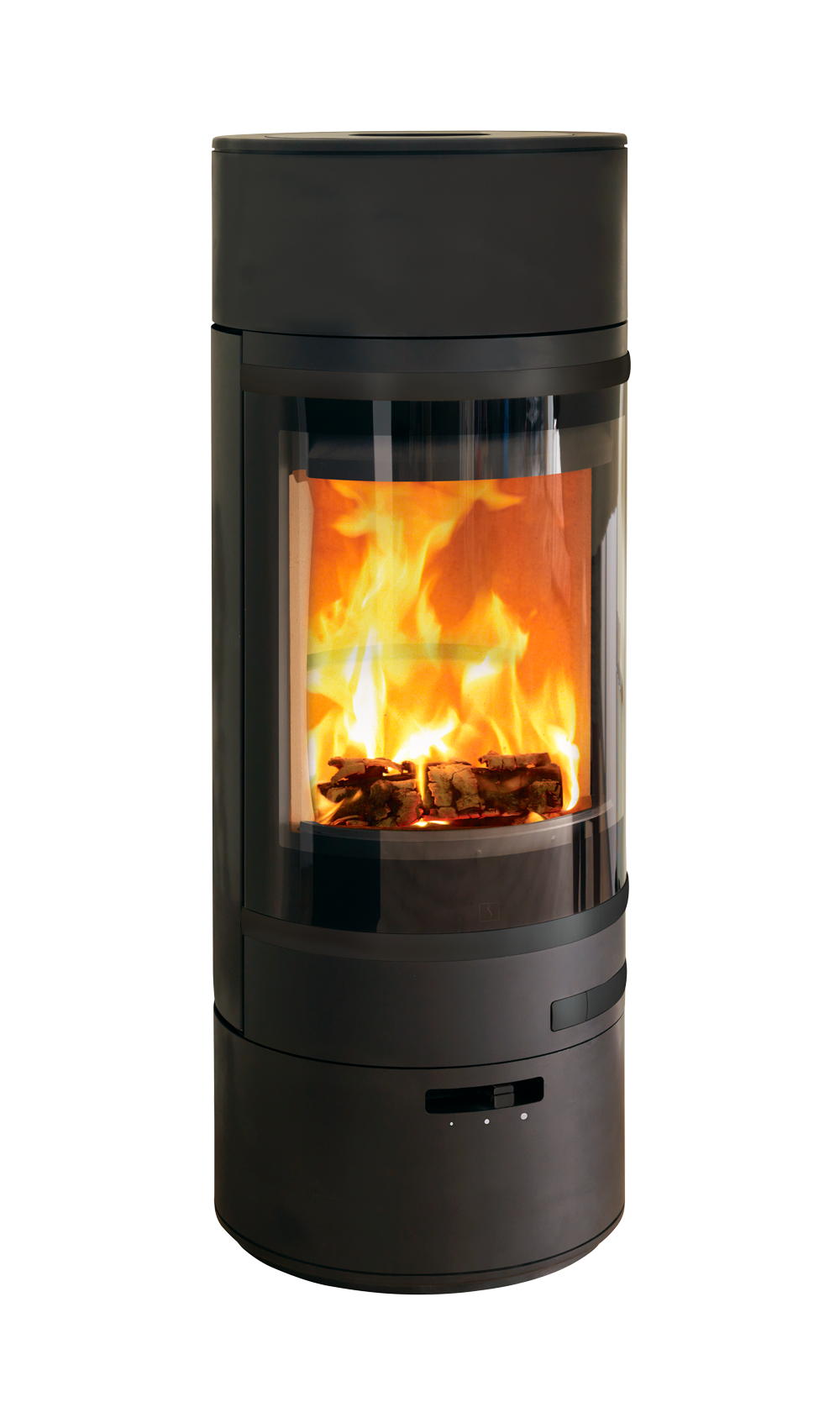

Scan 85 is a large cylindrical wood-burning stove, perfectly suited for larger rooms.

Elegant sliding door
Unique flame picture
Stove colour: black, grey or pure white

Size

Height: 1,464 mm

Width: 520 mm

Depth: 520 mm

Colors

Black paint (Selected)

Red Dot

Technical Specifications
Documents

Specifications

Height 1464 mm
Width 520 mm
Depth 520 mm
Weight 210 kg
Log size up to 50 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 8.0 kW
Efficiency 78 %
Heating capacity up to 160 m²
CO Emission 0.06 %
Dust Product Emission 7 mg/Nm³
NOx Emission 87 mg/Nm³
OGC Emission 32 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes
Ridding grate Yes

Installation- and User Manual (5.55 MB)

Statement terms (229 KB)

Product dimensions (318.42 KB)

Exploded view and spareparts (348.04 KB)

Declaration of Performance (69.55 KB)

Declaration of Conformity (253.4 KB)

Ecolabel datasheet (34.68 KB)

Data sheet (79.16 KB)

Ecolabel (874.79 KB)
