Wood

SCAN 68-9

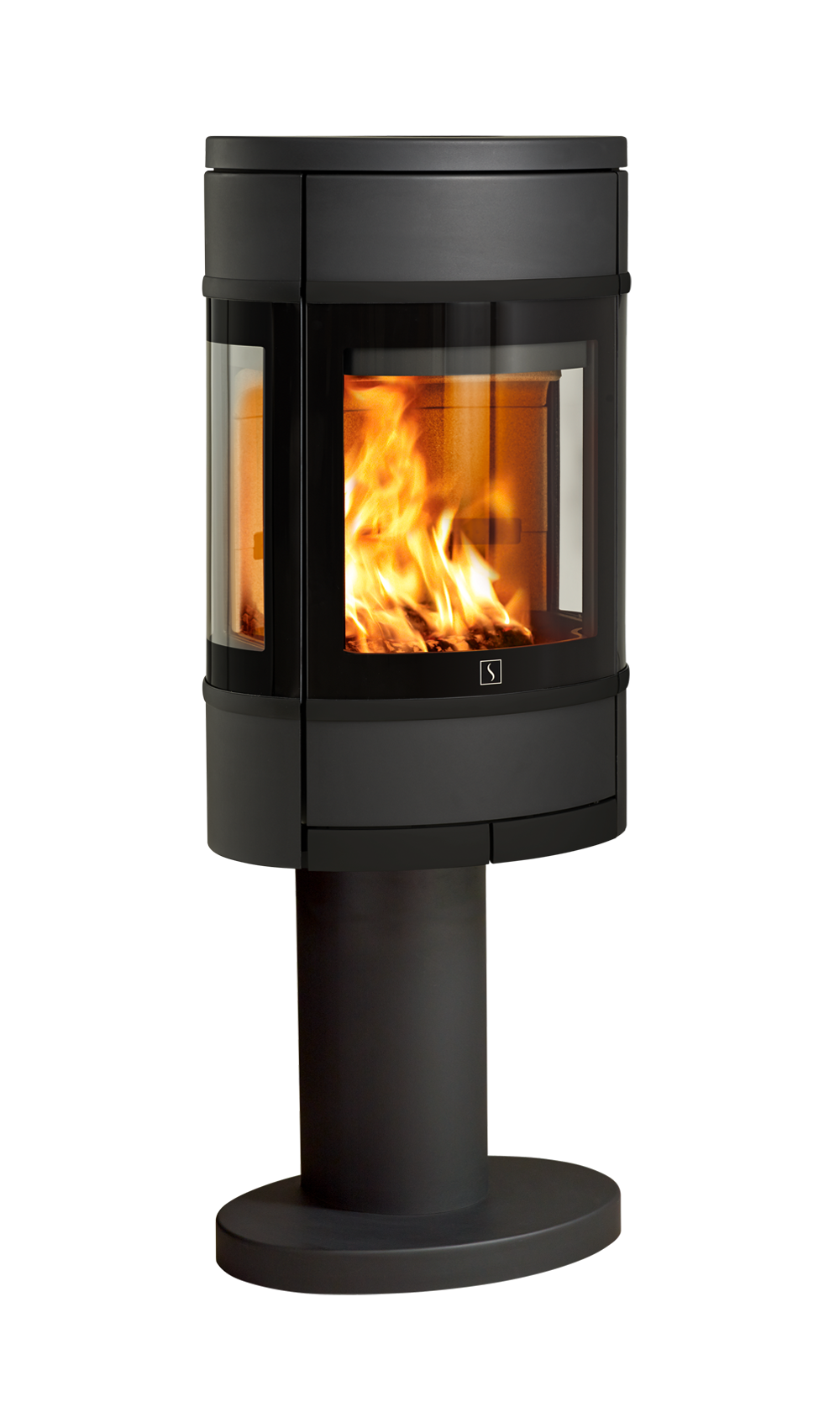

Elliptic wood burning stove

Description

The large side windows allow a unique view of the fire. Choose between handles and mouldings in black or aluminium. This model is available with a pedestal, an open portal, or a closed portal.

Stove colour black and white
With large, double side windows
Prepared for closed combustion

Size

Height: 1,272 mm

Width: 500 mm

Depth: 371 mm

Clean burn

Technical Specifications
Documents

Specifications

Height 1272 mm
Width 500 mm
Depth 371 mm
Weight 105 kg
Log size up to 33 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 5.5 kW
Efficiency 80 %
Heating capacity up to 120 m²
CO Emission 0.04 %
Dust Product Emission 14 mg/Nm³
NOx Emission 85 mg/Nm³
OGC Emission 29 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes

Installation- and User Manual (9.99 MB)

Statement terms (554.93 KB)

Product dimensions (482.32 KB)

Exploded view and spareparts (1.88 MB)

Declaration of Performance (72.45 KB)

Declaration of Conformity (662.49 KB)

Ecolabel datasheet (25.8 KB)

Data sheet (79.18 KB)

Ecolabel (933.05 KB)

Installation- and User Manual (10.41 MB)
