Wood

SCAN 67 1600

Slimline wood burner with self-regulating combustion technology

Description

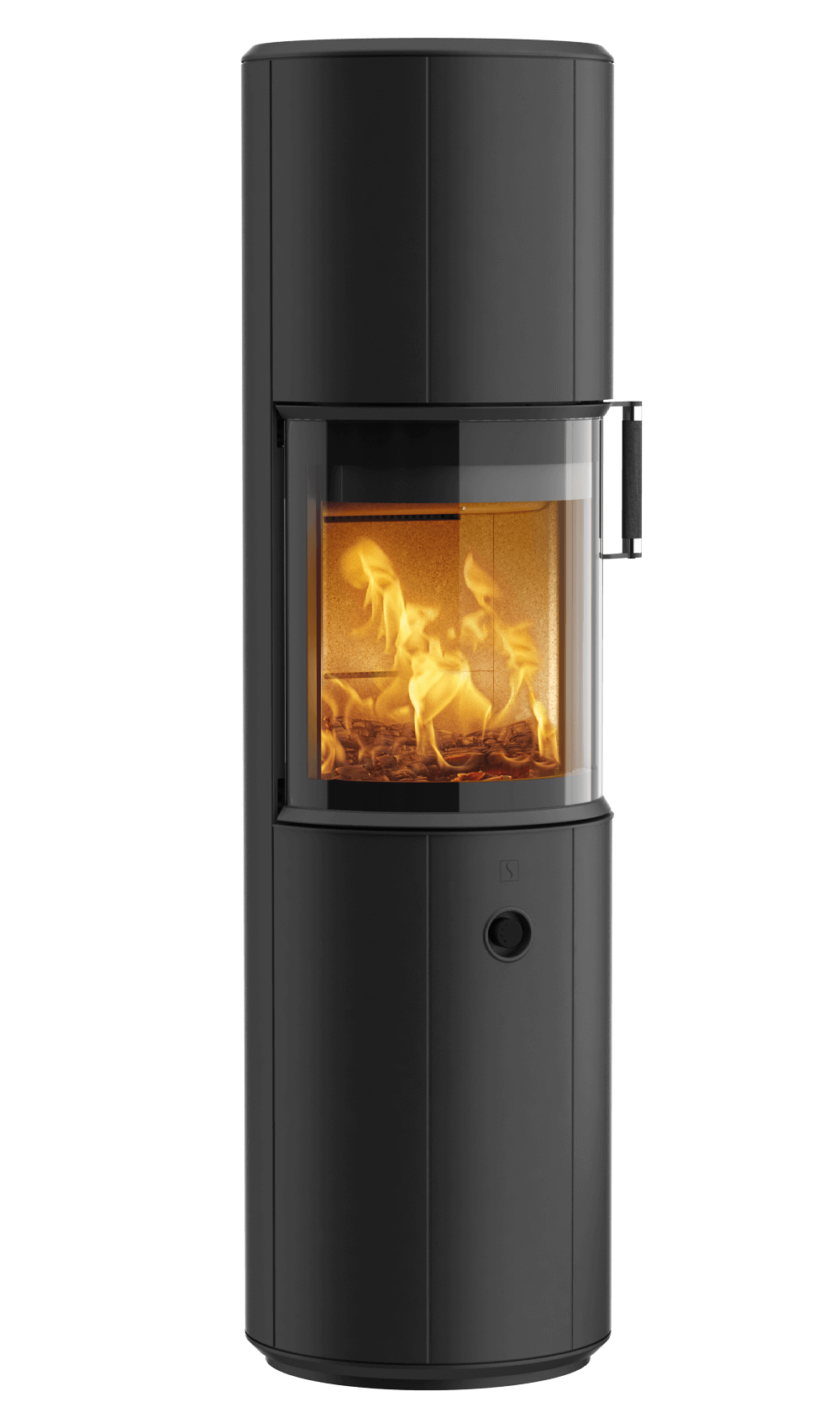

The Scan 67 1600 is a slimline wood burner that is stylish and practical in equal measure. The distinct lines, D silhouette and panoramic view curved glass door give the design aesthetic appeal and enhance the handcrafted feel. Replacing the black oak handle with another to achieve a different look is a simple job that you can do yourself – there are 7 others to choose from! The air flow is controlled automatically by Zensoric technology. As a result, this clean-burn stove keeps firewood usage and environmental impacts to an absolute minimum. If you wish to use the heat to its full potential, an extra heat storage mass can be fitted inside the top chamber.

Slimline wood burner with space-saving design
Clean-burn stove with Zensoric air control, easy on firewood and the environment
The handle can be replaced with another of a different length and colour

Size

Height: 1,600 mm

Width: 450 mm

Depth: 407 mm

Technology

Colors

Black paint (Selected)

Clean burn

Zensoric

Technical Specifications
Documents

Specifications

Height 1600 mm
Width 450 mm
Depth 407 mm
Weight 121 kg
Log size up to 35 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 5.0 kW
Efficiency 76 %
CO Emission 0.06 %
Dust Product Emission 30 mg/Nm³
NOx Emission 99 mg/Nm³
OGC Emission 38 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes
Ash solution Yes

Installation- and User Manual (6.45 MB)

User manual (1.1 MB)

User manual (3.61 MB)

User manual (1.94 MB)

User manual (2.21 MB)

Exploded view and spareparts (2.31 MB)

Declaration of Performance (241.17 KB)

Declaration of Conformity (175.42 KB)

Ecolabel datasheet (37.31 KB)

Data sheet (55.61 KB)

Ecolabel (853.37 KB)
