Wood

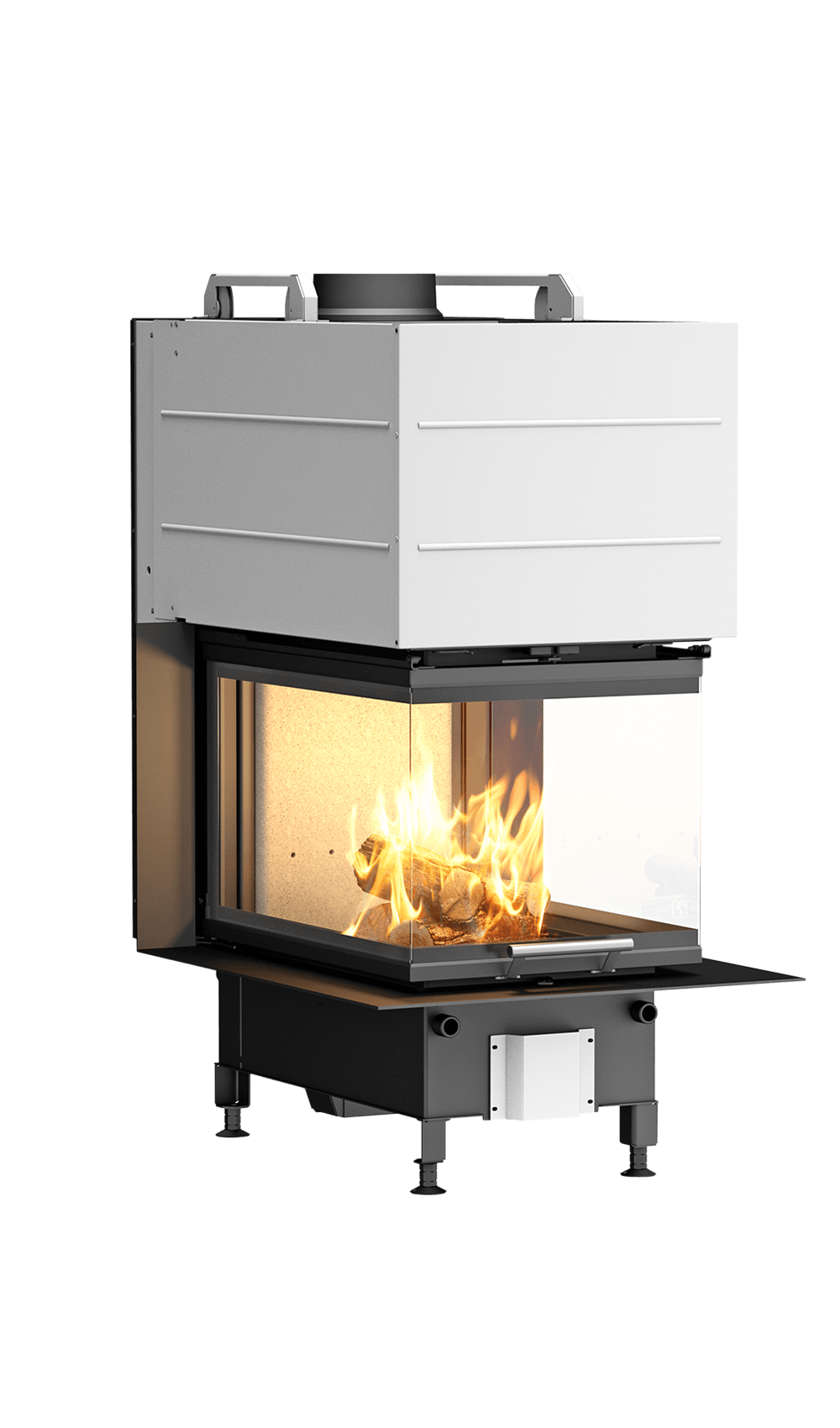

SCAN 5005 FRL

Exclusive fireplace insert

Description

This exclusive fireplace insert is eye-catching in the home and one of your favorite pieces of furniture. Large glasses on three sides that you can enjoy the beautiful flames and the merchants from several places in the room. The fireplace insert passes very well as a room divider and has a self-closing lifting door that provides a series of luxury.

Light burn plates
Large heating capacity
Self-closing guillotine door with "soft-close"

Size

Height: 1,382 mm

Width: 656 mm

Depth: 958 mm

Colors

Black paint (Selected)

Clean burn

Technical Specifications
Documents

Specifications

Height 1382 mm
Width 656 mm
Depth 958 mm
Weight 280 kg
Log size up to 50 cm
Flue outlet Ø 200 mm
Flue exit options Top / Rear

Nom output 10.0 kW
Efficiency 83 %
Heating capacity cubic up to 460 m³
CO Emission 0.09 %
Dust Product Emission 28 mg/Nm³
NOx Emission 126 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes

Installation- and User Manual (4.35 MB)

Statement terms (357.64 KB)

Product dimensions (357.13 KB)

Accessories (2.69 MB)

Exploded view and spareparts (2.24 MB)

Declaration of Performance (220.76 KB)

Declaration of Conformity (232.79 KB)

Ecolabel datasheet (28.09 KB)

Data sheet (77.92 KB)

Ecolabel (874.7 KB)
