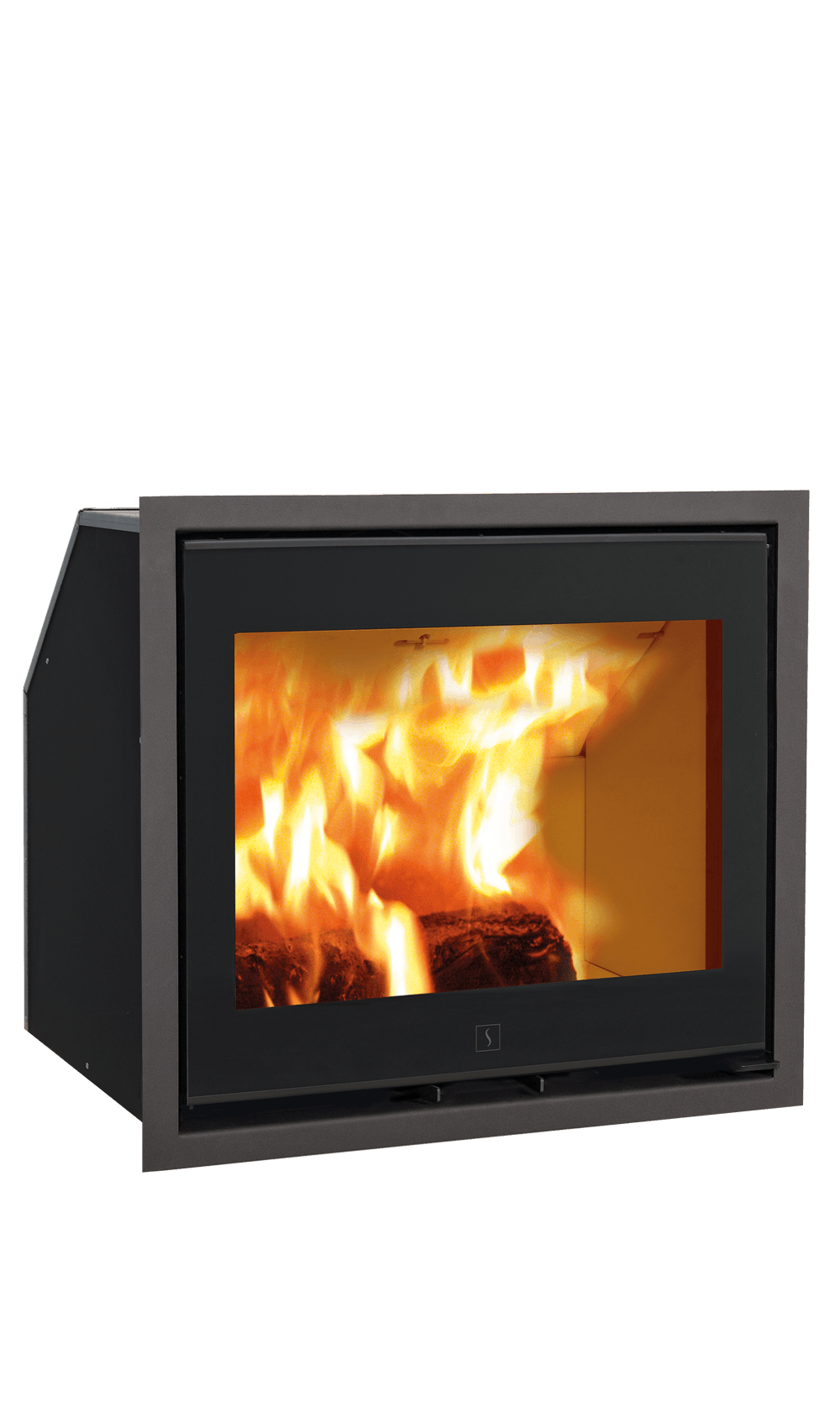

SCAN 1003 CS

Stylish and elegant

Description

Scan 1003 is a flush insert, available with either a white glass with matt chrome trims or a black glass with black trims. Scan 1003 takes logs up to 50 cm.

Simple and stylish design
Innovative details
Prepared for closed combustion

Size

Height: 570 mm

Width: 650 mm

Depth: 438 mm

Clean burn

Technical Specifications
Documents

Specifications

Height 570 mm
Width 650 mm
Depth 438 mm
Weight 121 kg
Log size up to 50 cm
Flue outlet Ø 148 mm
Flue exit options Top / Rear

Nom output 7.2 kW
Efficiency 81 %
Heating capacity up to 140 m²
CO Emission 0.09 %
Dust Product Emission 29 mg/Nm³
NOx Emission 95 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes

Installation- and User Manual (5.63 MB)

Installation- and User Manual (5.78 MB)

Statement terms (276.82 KB)

Product dimensions (75.77 KB)

Exploded view and spareparts (687.76 KB)

Declaration of Performance (220.35 KB)

Declaration of Conformity (196.49 KB)

Ecolabel datasheet (25.32 KB)

Data sheet (47.34 KB)

Ecolabel (874.7 KB)
