Wood

SCAN 5004 S FRL

Freestanding fireplaces with calcium silicate framing

Description

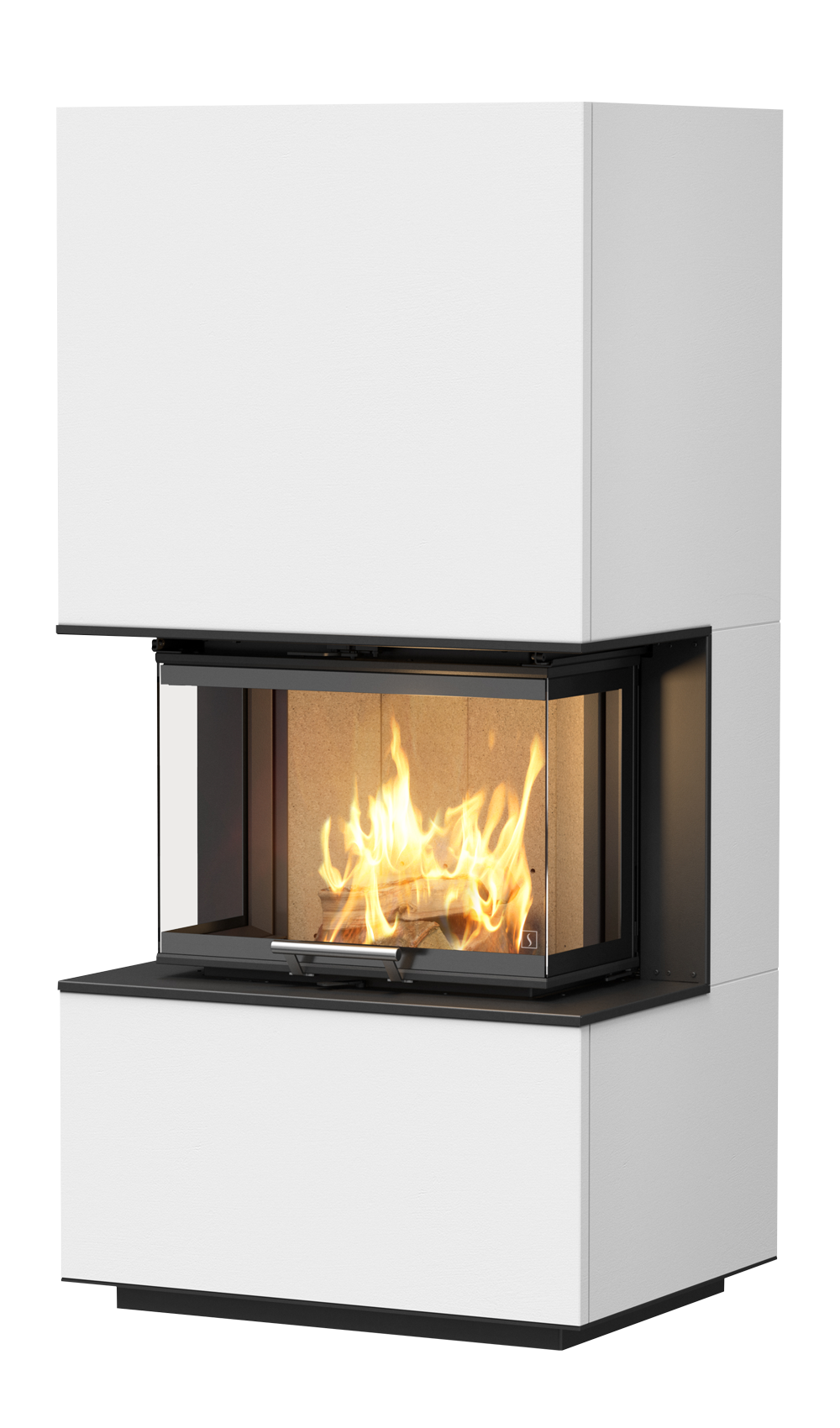

The Scan 5004-S FRL is a freestanding fireplace and provides access to the beautiful flames from three sides. The fireplace has a soft-close front door that adds a touch of luxury. The thoughtful design makes the fireplace quick and easy to install. Not only can it be painted right after installation, but for a more special surface or personal appearance, a finer or rougher finish can be applied.Air supply is discreetly integrated throughout the base, giving the fireplace a clean and modern design.

Complete set of calcium silicate sheets - ready to install
Quick, easy and secure assembly
The panels can be painted in the desired color immediately after installation

Size

Height: 1,800 mm

Width: 873 mm

Depth: 689.5 mm

Colors

Black paint (Selected)

Technical Specifications
Documents

Specifications

Height 1800 mm
Width 873 mm
Depth 689.5 mm
Weight 317 kg
Log size up to 45 cm
Flue outlet Ø 200 mm
Flue exit options Top / Rear

Nom output 7.8 kW
Efficiency 83 %
Heating capacity up to 160 m²
CO Emission 0.09 %
Dust Product Emission 25 mg/Nm³
NOx Emission 81 mg/Nm³
OGC Emission 35 mg/Nm³

Closed combustion Yes
Clean burn Yes
External air intake Yes

Installation- and User Manual (10.25 MB)

Statement terms (98.02 KB)

Product dimensions (218.56 KB)

Exploded view (419.13 KB)

Exploded view (1.98 MB)

Declaration of Performance (221.23 KB)

Declaration of Conformity (194.14 KB)

Ecolabel datasheet (37.33 KB)

Data sheet (78 KB)

Ecolabel (874.7 KB)
